Rapid and Robust Assessment
RedZone Robotics’ equipment captures complete and actionable information to find, fix, and prevent problems in wastewater management systems. We collect data to quickly understand and manage changes in your system over time. The RedZone suite of products and services enables the highest possible return on your inspection investment.
Multi-Sensor Inspection Advantage
Multi-sensor inspection is an advanced approach to synthesizing layers of data to reveal overlooked conditions of assets or your system as a whole. These advanced engineering technologies offer profound insights applicable to any assessment priority.
Our advanced suite of inspection robots are more cost-effective, safe, and reliable than any other solution on the market. The use of our autonomous and remotely-operated inspection robots increases employee safety by keeping crews out of dangerous sewer systems, while also collecting the most complete data set.
A Solution for the Entire System

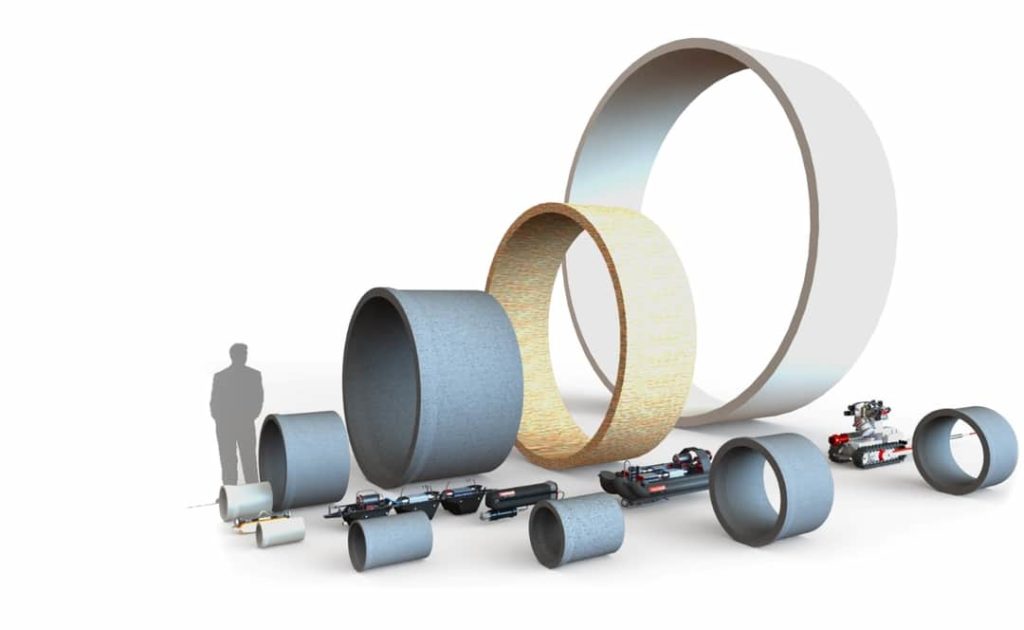

From 8-inch pipe to 240-inch pipe, RedZone Robotics has the advanced pipeline assessment resources to meet your inspection needs. Our robots range from autonomous to remotely-operated, aquatic to submarine, and our snap-on Profiler can further customize a solution to fit your needs.
Complete and comprehensive assessment of your entire system provides greater return when begun immediately. RedZone Robotics developed the Accelerated System Assessment Program (ASAP) to offer a proactive solution to strategize and manage a smarter system.
MSI for Every Pipe and Condition
Responder® and Profiler®, RedZone’s mid- and large-diameter inspection platforms, are ideal for both the size and the demanding conditions associated with larger pipes. SOLO® is an autonomous robot that provides a highly-efficient, cost-effective, and versatile way to inspect the abundant quantity of 200-millimeter to 300-millimeter / 8-inch to 12-inch pipes that are part of all collection systems. All collected data is processed in accordance with NASSCO, PACP, MACP, and LACP Standards.
Solo
Minimum Access: 8 in (200 mm)
Pipe Size: 8-12 in (200-300 mm
Water Level: 0-25%
Reports: NASSCO PACP/MACP, WRc, WSSA
Read More
MD Profiler
Minimum Access: 19 in (480 mm)
Pipe Size: 15-36 in (400-915 mm)
Water Level: 0-50%
Reports: Corrosion, Debris, Flow, Height, Pipe Size, Ovality
Read More

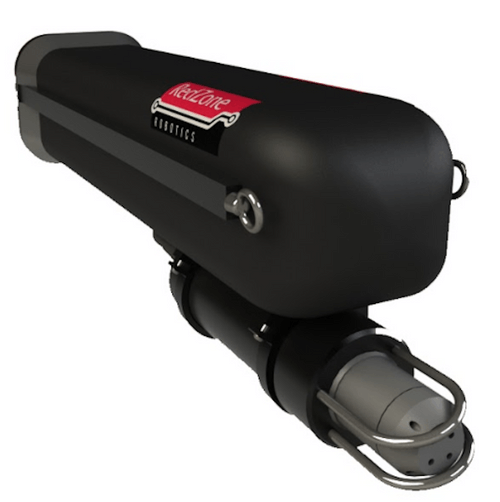

MD Sub
Minimum Access: 19 in (480mm)
Pipe Size: 20-87 in (500-2200 mm)
Water Level: 25-100%
Reports: Debris, Flow Height, Pipe Size
Read More
SuperMD
Minimum Access: 19 in (480 mm)
Pipe Size: 36-125 in (915-3200 mm)
Water Level: 25-75%
Reports: Corrosion, Debris, Flow, Height, Pipe Size, Ovality
Read More
Responder
Minimum Access: 22.5 in (570mm)
Pipe Size: 36-240 in (915-6000 mm)
Water Level: 0-100%
Reports: Corrosion, Debris, Alignment, Flow Height, Pipe Size, Ovality, Virtual Mandrel, H2S Gas/Temperature
Read More
VertueTM
Chamber Size: 24 in – 25 ft
Chamber Depth: Up to 100 ft
Technology: Laser, GPS, CCTV – Virtual Pan/Tilt/Zoom, Photogrammetry
Reports: MACP, GPS, Chamber Dimensions / Geometry
Read More
SnapOn Profiler
- Supports the Profiler platform devices
- Provides laser information to conventional CCTV or similar devices
- Extremely accurate
- Easy ovality profiling
- Gathers data that can be stored and analyzed across a variety of asset management systems including ICOM®
We hit the pavement with pride.
With RedZone’s proven MSI technology, the Fort Worth Water Department has saved $2.9 million in large diameter cleaning cost to date. It is estimated that the ICAP (Interceptor Condition Assessment Program) methodology of “inspect-to-clean” will result in a savings of $15.2 million in cleaning costs over the six year program.
Darrell Gadberry, Collections System Manager, Fort Worth Water Department
For more information on RedZone’s technology or services, contact your local RedZone representative.
