Next Generation MSI | Profiler3D

Enhanced imagery and photogrammetry coupled with the same trusted multi-sensor data.

The Profiler3D™ brings clarity and another dimension to the trusted and proven RedZone multi-sensor (MSI) data. Listening to our customers, Profiler3D provides four clear HD videos that can be synthetically stitched to provide a virtual experience like no other.

With advances in computing power, Profiler3D™ can provide photorealistic 3D models to augment MSI data that has an over 16 million foot track record.

Profiler3D pipeline inspection robot artist rendering — *See the entire pipeline in full, 360 degree, high-resolution, even in low-light conditions.*

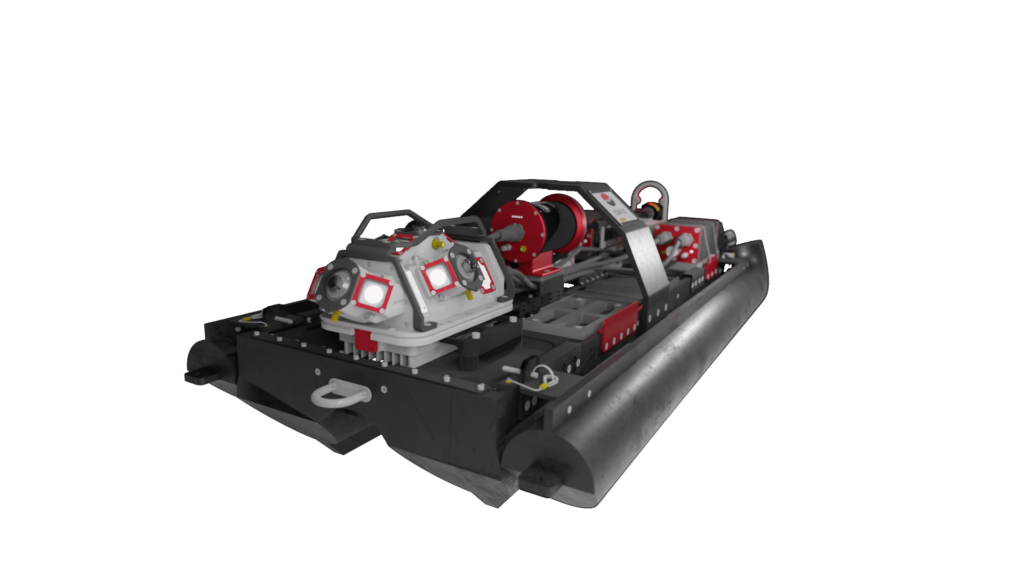

*Profiler3D™ shown mounted on the MDPlatform*

Clear crisp imagery.

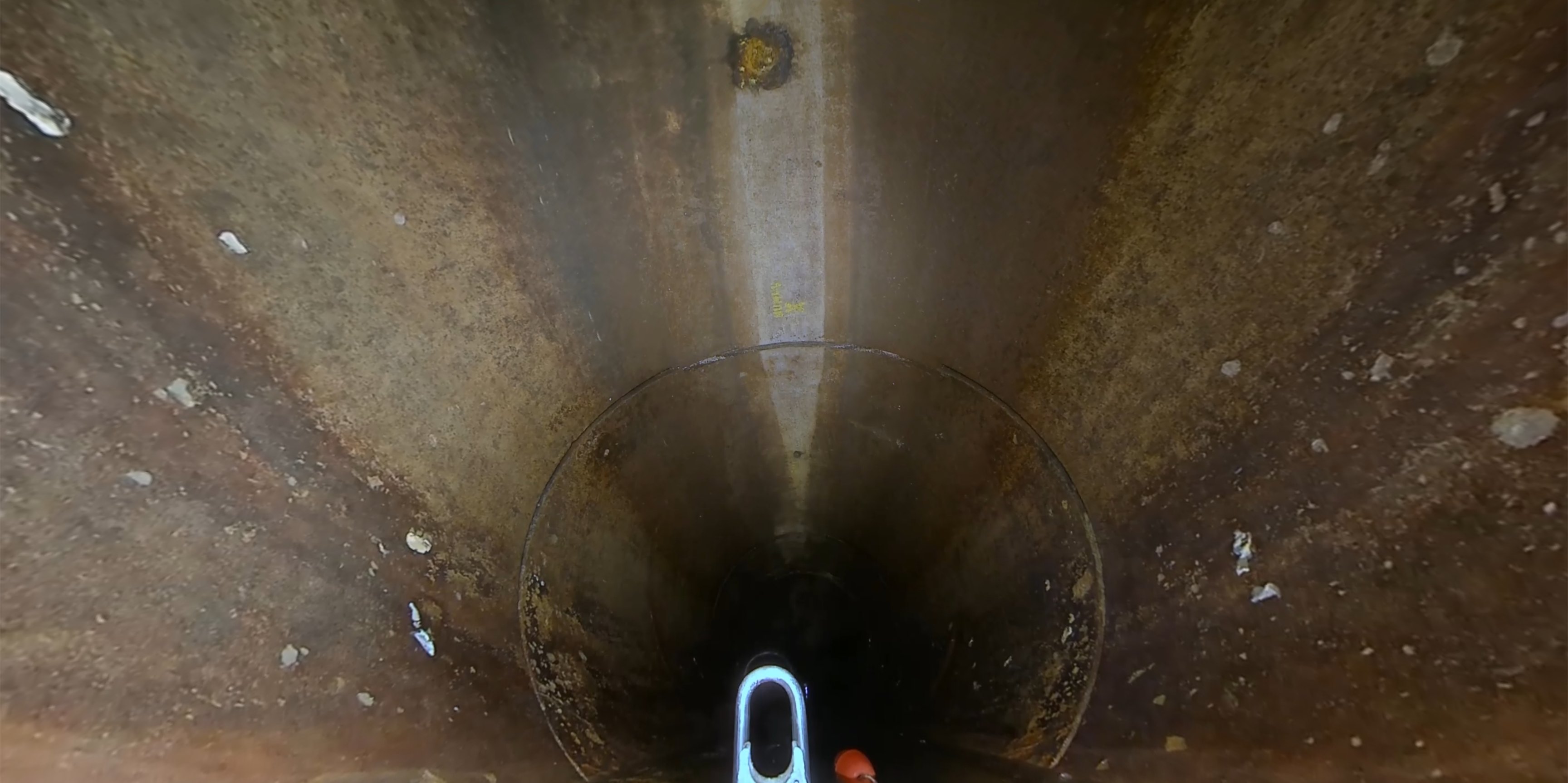

Profiler3D provides clear crisp imagery that lets you see every aspect of your pipeline. See every detail with UHD video.

Profiler3D Data as a 3D model by RedZone Robotics

Multi-Sensor Inspections.

Quantitatively identify corrosion and sediment hotspots within your network pipe’s condition. Accurately view and measure pipe dimensions and defects, as well as review data with rendered, three-dimensional views.

3D model of a pipeline generated by Profiler3D

3D modeling.

3D modeling allows you to view the pipe from every angle, including interior and exterior views. Pan, tilt, zoom, and rotate the model to fully explore your asset with three-dimensional views.

Integrity data management platform by RedZone Robotics

Why Profiler3D™?

The multi-sensor inspection tool for Collectors, Interceptors, and Main Trunks.

Clear imagery
With Profiler3D™, crews are able to capture clear and concise imagery that can be used to create 3D models and point clouds of a pipeline.
Long Distance Inspections
Due to the onboard computing power and battery operated Profiler3D can inspect up to 20,000ft in a single deployment, pipelines previously thought uninspectable now have a solution
Get data in the format you need
Profiler3D data can be accessed using RedZone’s Integrity™ SaaS platform. MSI data can be dynamically interrogated – no more static documents.

Pipe Diameters

Inspect chambers from 20 inches to 240 inches.

Graphic of pipe with water at 1/4 level full

Water Level

0 – 3/4 full

Minimum Access

19″ / 480mm

Profiler3D Specifications

Technology

Laser/LIDAR*, Sonar, CCTV – Virtual Pan/Tilt/Zoom

Photogrammetry

*Pipe size dependent

Parameters

Transportation: Floating Platform / Wheeled Platform / Responder

Pipe Size: 20 in – 240 in

Inspection Length: Up to 20,000 ft

Resolution: 4x HD cameras (1920×1080)

Storage Space: 1 TB

Battery Life: 4-6hrs depending on configuration

Voltage: 14.4 V Li-ion

Deliverables

PACP, Pipe Dimensions / Geometry, Corrosion, Debris, Flow Height, Pipe Size, Ovality, Pipe Alignment, Virtual Mandrel, Gas, Temperature

Enhanced imagery and photogrammetry coupled with the same trusted multi-sensor data.
