Meet the Profiler® MSI Pipe Inspection Float family.
The team of profiling tools that can meet all of you wastewater infrastructure inspection needs.
SuperMD Profiler®
Designed for interceptors
Laser/sonar profiling
Wide-angle video
Long distance deployments
MDProfiler®
Designed for mid-sized pipes with or without flow
Laser/sonar profiling
Long distance deployments
SnapOn Profiler®
Designed to enhance existing crawler platforms
Ovality measurement
Data management software
Why Profiler®?
The adaptable, accurate multi-sensor monitoring solution for almost any pipe.
- Adaptable
The Profiler® MSI Pipe Inspection Float is adaptable for an abundance of pipe sizes with and without flow. - Long range
Conventional sonar platforms require a cable to the surface to control the equipment in the pipe. Due to the modular recording components stored within Profiler® MSI Pipe Inspection Float, inspections are only limited by the battery life of the unit, allowing for long stretches of line to be easily inspected. - Siphons
Inspect siphons and fully surcharged lines to identify the true condition of your pipes. - Accuracy
Accurate, precision assessment with accuracy of +/- 3 mm – 24mm (.12 in – .9 in) dependent on Profiler platform and conditions.
Check out Profiler 3D™, our newest technology in the Profiler family
SuperMD Profiler®
Designed to traverse interceptors and other hard-to-reach assets that most conventional crawlers cannot, SuperMD is the perfect choice for long distance deployments of 10,000 feet (3,000 meters) or more, providing laser and sonar profiling with high-resolution virtual pan, tilt, and zoom camera.
Proactively protect interceptors
Interceptors are some of the most difficult areas of a system to access and are often the backbone of any city’s sewer infrastructure. They are also the most expensive to clean, maintain, and rehabilitate and present the highest consequence of failure within any system. With SuperMD Profiler®, you get the clearest picture of your system’s interceptors that no crawler can provide.
Deliverables
Corrosion, Debris, Flow Height, Pipe Size, Ovality
Platform Specs
Sensors
Laser, Sonar, CCTV- Virtual Pan/Tilt/Zoom
Parameters
Transportation: Floating platform
Pipe Size: 36-125 in (915-3200 mm)
Min. Flow: 15 in (380 mm)
Min. Air Gap: 20 in (500 mm)
WiFi Connectivity: Dependent on pipeline conditions
Contact us to learn how SuperMD Profiler can gather multi-sensor data for your system.
MDProfiler®
Designed to gather a full spectrum of MSI inspection data including CCTV, sonar, and laser data, MDProfiler is designed for long distance deployments of 10,000 feet (3,000 meters) or more.
Mid-Sized MSI
MDProfiler’s adaptable design allows for both wheeled or float platforms in order to gather the most data possible within your mid-sized pipes. Flow or no flow – not a problem for the MDProfiler.
Deliverables
Corrosion, Debris, Flow Height, Pipe Size, Ovality
Platform Specs
Sensors
Laser, Sonar, CCTV – Virtual pan, tilt, and zoom
Parameters
Transportation: Floating/wheeled platform
Pipe Size: 20 – 36 in (500-915 mm)
Min Flow: No flow
Min Air Gap: 8 in (200 mm)
WiFi Connectivity: Dependent on pipeline conditions
Contact us to learn how an inspection with MDProfiler® can help protect your system.

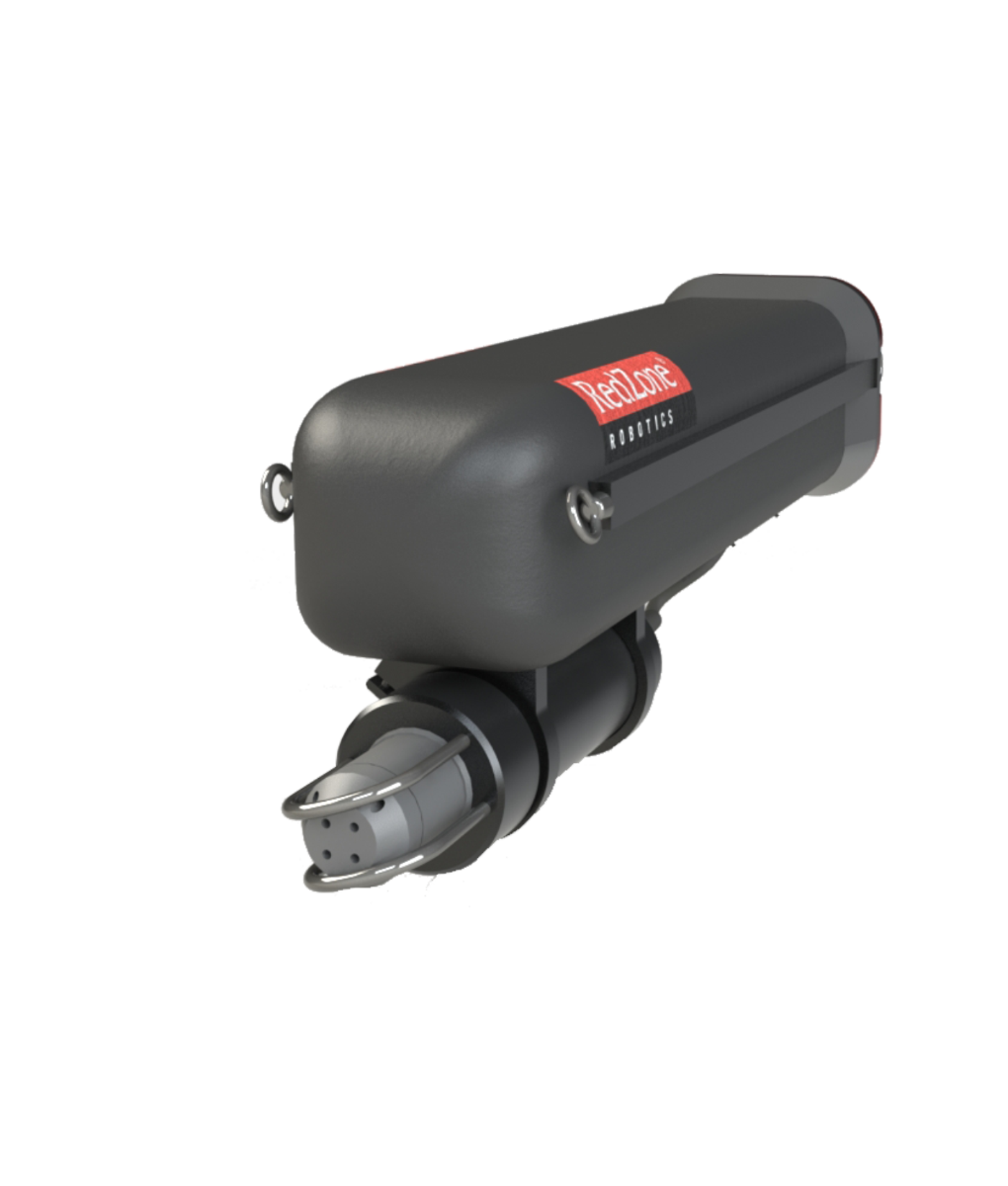

MDSub®
Designed for siphons and fully surcharged lines, MDSub allows for long-range deployments of 8,000 feet (2400 meters) or more. Identify areas of significant sediment build up in those hard-to-reach places where no CCTV crawler can go.
Mid-sized MSI
MDSub allows you to identify the true condition of your surcharged assets including major faults, debris volume and location, and water level.
Deliverables
Debris, Flow Height, Pipe Size
Platform Specs
Sensors
Sonar
Parameters
Transportation: Neutrally buoyant platform
Pipe Size: 20-87 in (500-2200 mm)
Min. Flow: 14 in (350 mm)
Min. Air Gap: 0 in (0 mm) (Fully surcharged)
Contact us to learn how MDSub can gather robust sensor data in your mid-sized pipes.
SnapOn Profiler®
SnapOn lasers provide ovality profiling measurements to enhance the information gathered by many of the most popular CCTV cameras. Simply attach the laser to the crawler and craweler’s camera will collect and record the laser projected on the pipe wall. The SnapOn software then digitizes the pipeline condition, presenting the previously unseen, unquantifiable deformation in easy-to-read reports.
Universally Compatible
With over 500 systems sold in 43 countries, RedZone’s SnapOn lasers attach to most industry leading CCTV cameras and the deployment software has been translated into 10 languages.
Deliverables
User Generated Reports including Ovality Line Graph, Topographical Flat Graph, Median Diameter, Min/Max Diameter, True Diameter, Capacity
Exports – CSV, STL
Compatibility Specifications
CUES – Datasheet
IBAK – Datasheet
iPEK/Envirosight – Datasheet
Subsite/RSTechnical
Software
Full Install – 6.3.2 – Download
Contact us to learn how SnapOn Profiler can add ovality profiling capability to your inspection tools.
